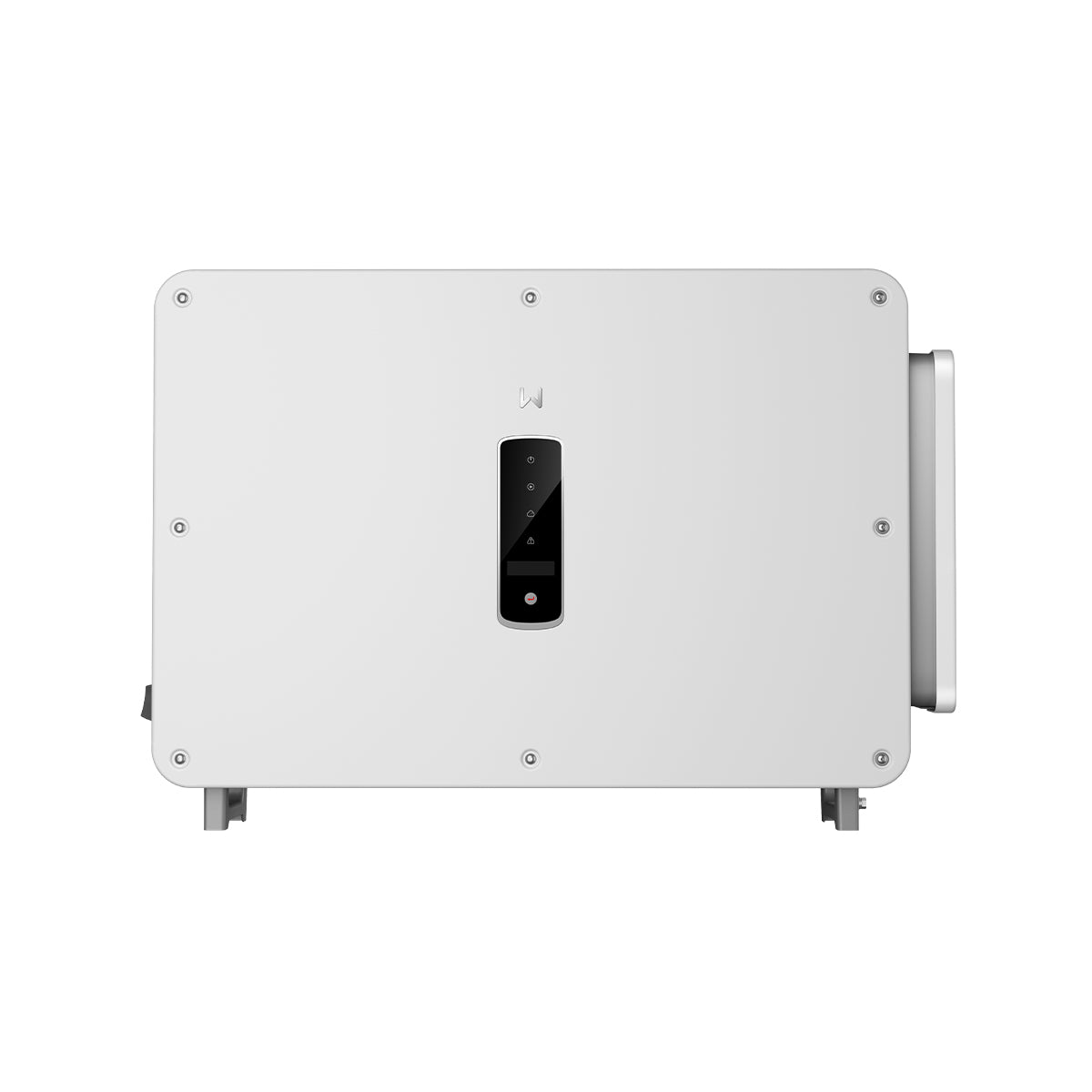

The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density. Multiple MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. The optional PID (Potential Induced Degradation) recovery function is also supported for better module performance. Safety is always the first priority. Both the DC and AC sides are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an unrivaled set of features, GT Series inverters were conceived to deliver increased return on investment (ROI) for C&I PV projects.
Key Features
String level monitoring
Type II SPD on AC & DC sides
21A DC input current per string
8/10 MPPTs, max. Efficiency 99.0%
IP66 and optional C5 protection
Type II Surge Protection & optional AFCI
Superb Safety & Reliability
Equipped with IP66 and C5 protection, GT Series endures harsh environments for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
Optimal Generation for Higher Return
With the compatibility with bi-facial modules and maximum 21A DC input current per string, GT can deliver comprehensive commercial energy yields for increased ROI.
Model
GW100K-GT
Max. Input Voltage (V):
1100.0
Max. Input Current per MPPT (A):
42
Number of MPP trackers/Number of Strings per MPPT:
8 / 2
Nominal Output Voltage (V) :
220 / 380, 230 / 400, 277 / 480, 3L / N / PE or 3L / PE
Max. Efficiency :
98.8%
