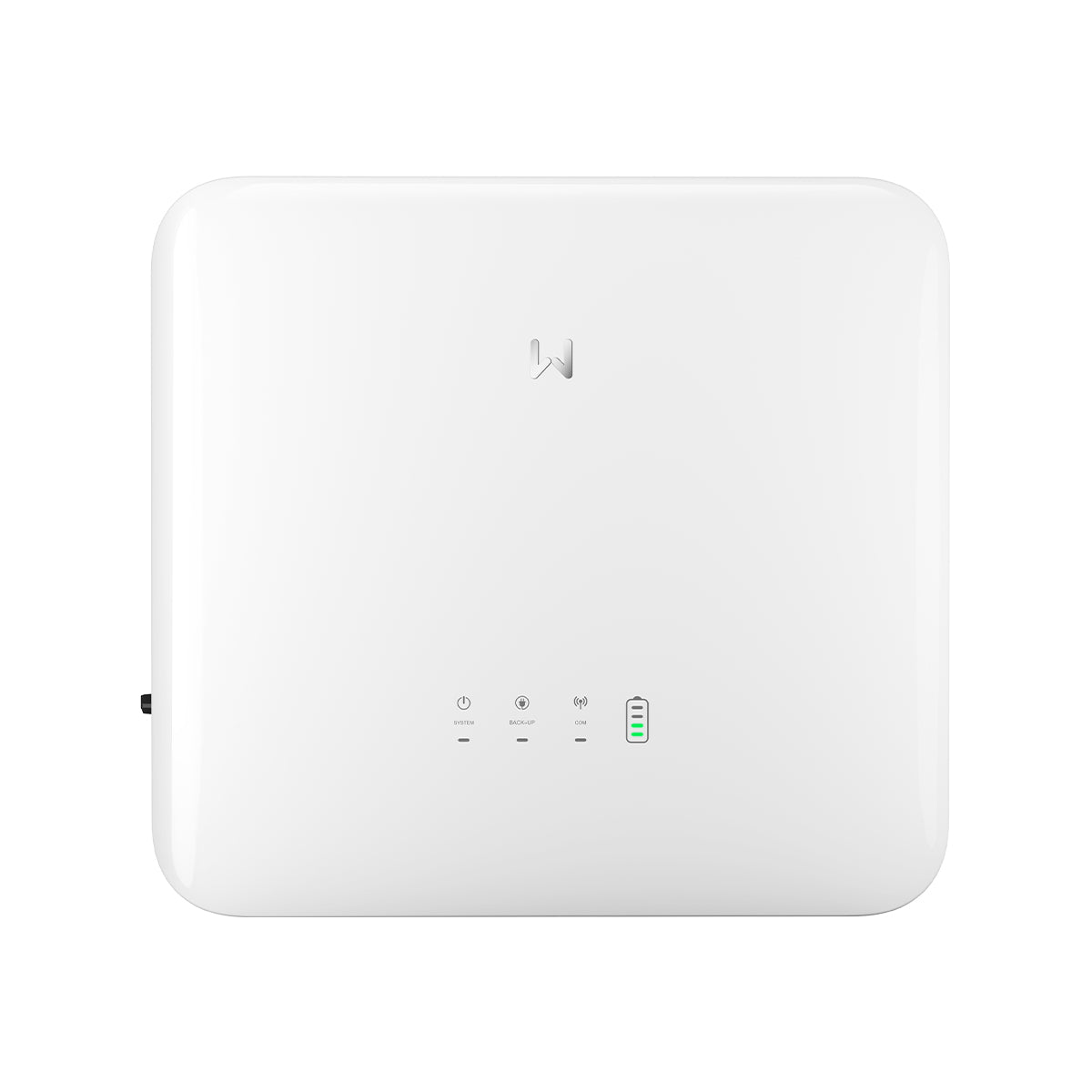

The ET G2 Series is the latest iteration of the ET Series and has been specially designed to accommodate households' increasing demand for electricity consumption while delivering additional benefits that cater to flexible residential needs.
This inverter features an elegant and sleek design that can harmonize beautifully with the house's aesthetic. With the addition of 12kW and 15kW higher power capacities, the ET G2 is now equipped to deliver even more powerful generation, allowing for optimal energy harvesting. It supports parallel connections with up to 4 units, ideal for expanding energy needs
Key Features
Integrated dry contact for external loads
AI-driven AFCI 3.0
Up to 160% PV input oversizing
Fast load response
Type II SPD on DC & AC sides
AI-driven AFCI 3.0
Superb Safety & Reliability
Type II surge protection on both DC and AC sides is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With integrated Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
High Generation and Optimized Consumption
The ET G2 Series has been improved for compatibility with high-power modules, with a maximum of 16A input current per string. The 200% PV input oversizing and 98.2% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
Model
GW10K-ET-20
Max. Input Current per MPPT (A)
16
Battery Voltage Range (V)
150 ~ 720
Max. Apparent Power Output to Utility Grid (VA)
10000
Max. Continuous Charging Current (A)
40
Max. Continuous Discharging Current (A)
40
