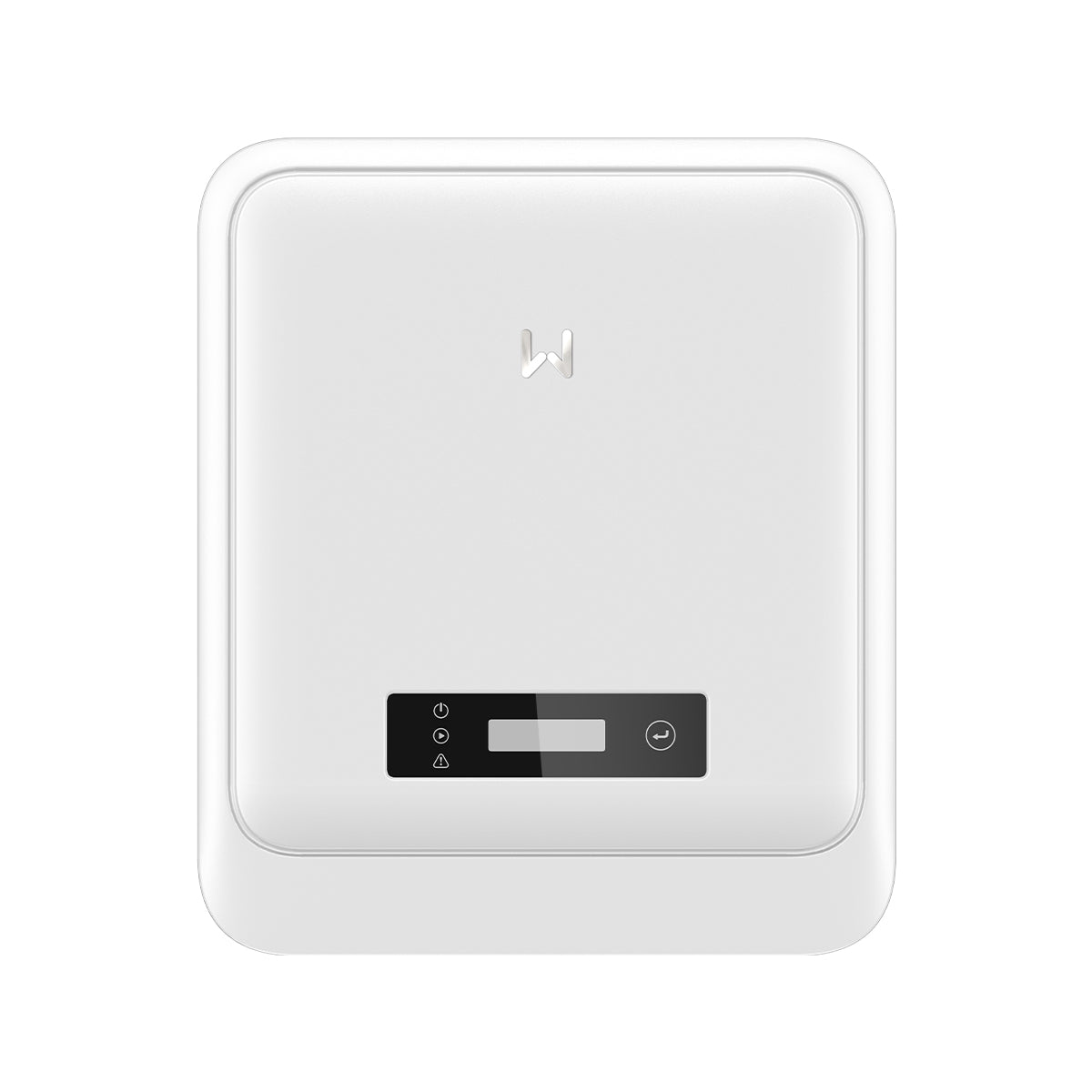

The GoodWe DNS G3 series inverter is specially designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, the series can bring you optimized power generation and make substantial returns. With its lighter and fanless house fit-in compact design, the DNS G3 inverter provides a reliable power supply yet runs at a super quiet operation below 25dB. The inverter also takes safety measures including optional Arc Fault Failure Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments for guaranteed safety.
Key Features
24/7 load consumption monitoring
Multiple communication protocols supported
Optional AFCI preventing electrical fires
Optional AC & DC Type II SPD & SPD failure alarm
Optional AFCI
Dry contact connection
Multiple communication protocols
24-hour load consumption monitoring
Superb Safety & Reliability
The emphasizing integrated safety features of optional AFCI, IP 66 ingress protection, smart SPD failure alarm and Type II surge protector on both sides can assure continuous safety and protect the whole PV system from hazards in extreme conditions.
Smart Control & Monitoring
DNS G3 Series supports dry contact connection and multiple protocols including Modbus RTU and Sunspec to realize amazing communication flexibility. In addition, users can take all-around control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000 with direct access to transparent data that quantify the system performance.
Optimal Generation
Being compatible with high power modules, and allowing a maximum 16 A input current per string, the competency of this inverter is considerably improved. The 150% DC input oversizing and 110% AC output overloading capability, and 97.9% maximum efficiency drive your inverter to its full capacity to increase your power output under various solar radiation conditions.
Model
GW3000-DNS-30
Max. Input Voltage (V):
600.0
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
12.8
Nominal Output Voltage (V) :
220/230/240
