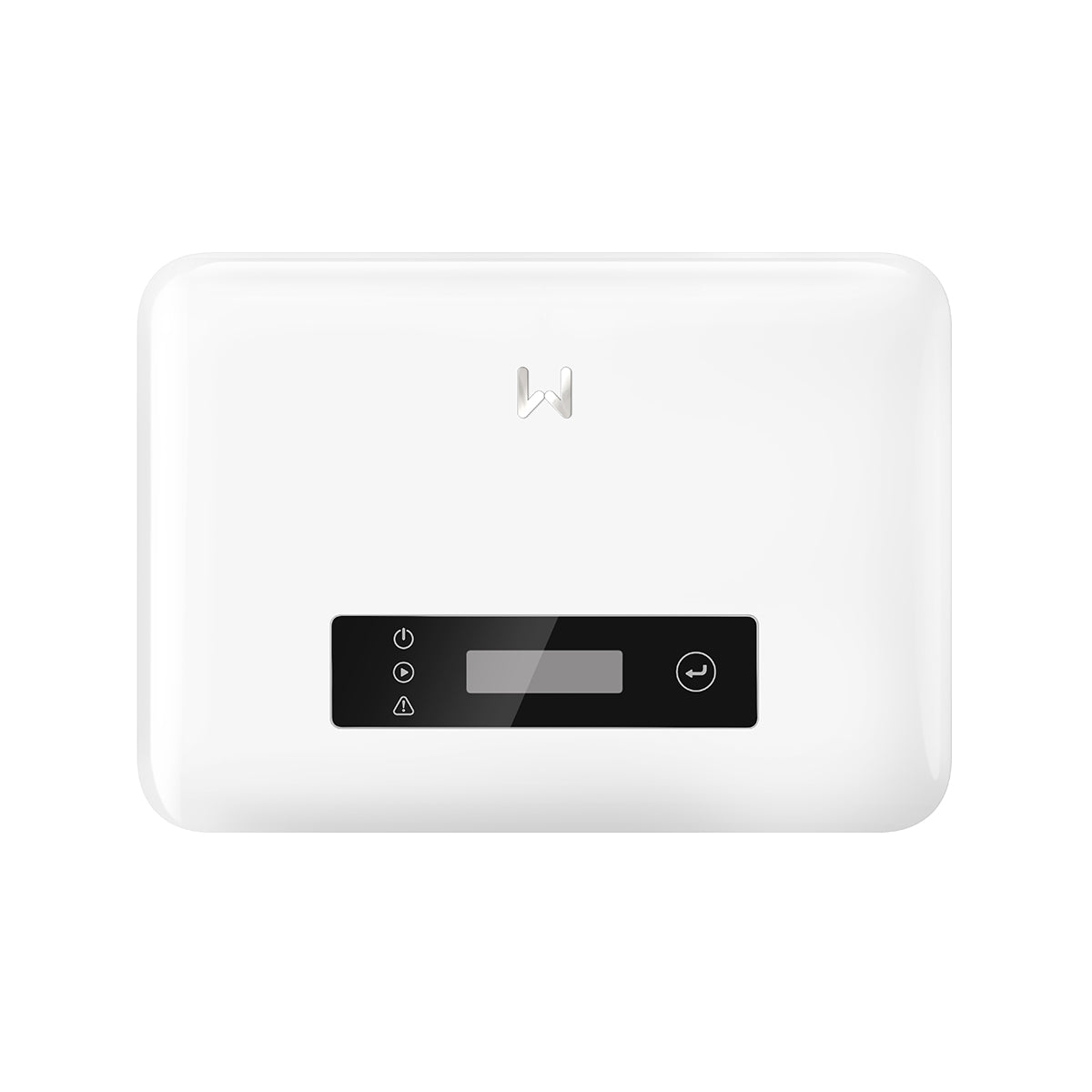

GoodWe XS G3 Series is a residential solar inverter that is designed for maximum convenience and efficiency. It is incredibly lightweight, weighing only 4.6 kg and is as compact as an A4 paper, facilitating effortless installation and handling. It boasts an impressive 200% DC input oversizing and a maximum efficiency of 97.6%, ensuring maximum performance and energy generation for homeowners. In addition to its high efficiency, the inverter also offers a quiet operation with <20dB noise levels and IP66 ingress protection. Multiple communication options are supported for easy integration into a smart home system.
Key Features
24/7 load consumption monitoring
200% DC input oversizing
Optional Type II SPD on both DC & AC sides
Fanless design for quiet operation
Optional AFCI
Optional Type II SPD on DC & AC sides
Export power limit
Superb Safety & Reliability
With optional AFCI, the inverter detects arc fault failures, sends alarms through monitoring systems, and breaks the circuit. Optional Type II Surge Protection Device (SPD) on both sides guards against lightning and other hazards.
Smart Control & Monitoring
Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe's smart meter. Thanks to the integrated export power limit, XS G3 Series can adapt to the power limit imposed by the local energy provider.
Optimal Generation
Offering a maximum input current of 16A per string, the XS G3 demonstrates strong performance, promoting efficient energy capture. Its noteworthy 200% DC input oversizing capacity is particularly advantageous, enabling enhanced energy harvesting across diverse conditions.
Model
GW3000-XS-30
Max. Input Voltage (V)
600.0
Max. Input Current per MPPT (A)
16
Number of MPP trackers/Number of Strings per MPPT
1/1
Weight (kg)
4.6
Nominal Output Voltage (V)
220 / 230 / 240, L / N / PE
