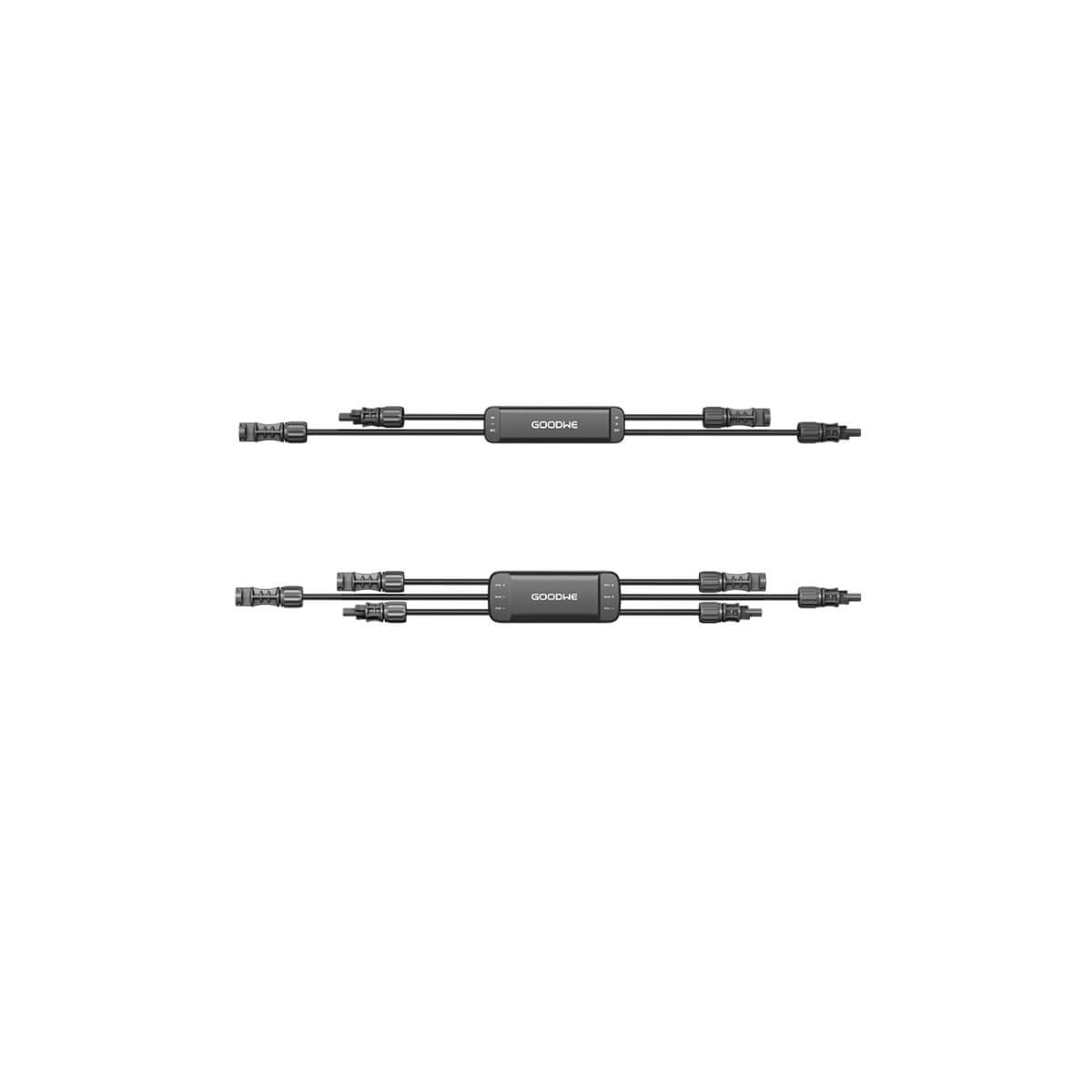

GoodWe RSD Rapid Shut Down Receiver 2 panel

The Rapid Shutdown (RSD) Receiver from GoodWe is a key component of the RSD 2.0 solution for PV systems, can be connected with one or two modules. Functioning as a module-level rapid shutdown device, it enhances fire safety for solar rooftops and buildings. The Receiver ensures the normal operation of modules by consistently receiving a PLC keep-alive signal from a transmitter integrated into GoodWe's inverters or an external transmitter. During emergencies, the module-level rapid shutdown is activated when the transmitter loses power and the signal becomes absent. In addition, when the external RSD initiator is pressed, the modules can also be shut down.

Key Features

• Plug & Play for easy installation
• Integrated SoC for high reliability
• Supports PLC communication
• Meets NEC 2017/2020 requirements and SunSpec certified

Model	GR-B2F-20
Ingress Protection Rating	IP68 / UL Type 6P
Mode of Communication	PLC
Operating Temperature Range (°C / °F)	-40 ~ +85°C (-40 ~ +185°F)
Security Certification	NEC 2017 & 2020 & 2023 (690.12); UL1741; CSA C22.2 No. 330; IEC / EN62109-1
Dimension (W x H x D mm / in)	132 x 52 x 23 mm (5.20 x 2.05 x 0.91 in)
