Renusol Console+ Bundle with Fixings

Description

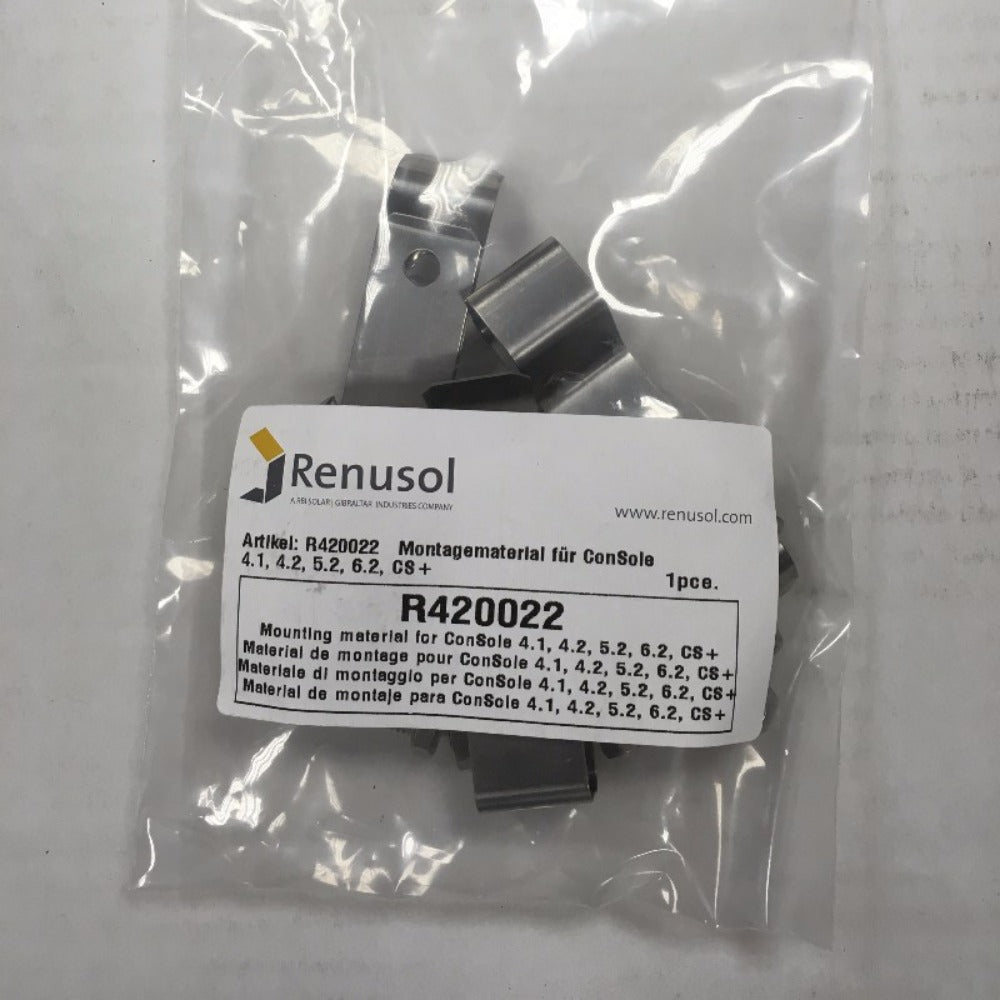

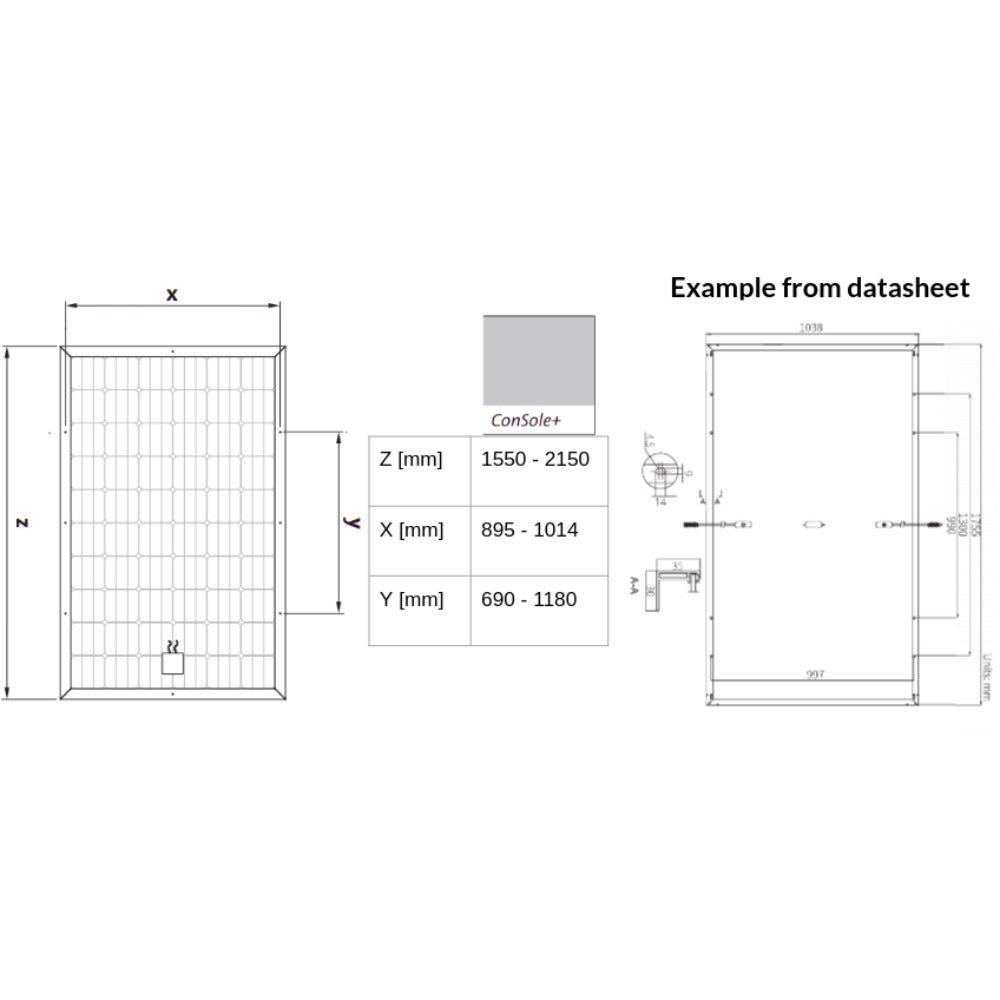

\nThe ConSole+ provides an angle of 15 degrees and can be fitted to flat roofs with a pitch of up to 5 degrees. Most commercially available framed standard PV modules fit on the ConSole.\n\nThe ConSole is weighed down with ballast. Any material can be used: gravel, paving slabs, bricks, rocks etc. The amount of ballast depends on the height and location of the building.\n\nMounting components are included for framed PV-modules. The modules attach to the mounts using the mounting holes on the back of the module. Please check the measurements below against your panel specification:\n\nMax module length: 1550-2150 mm\nHoles gap - width: 895-1014 mm\nHoles gap - length: 690-1180 mm\n\n Pack includes:\n

\n

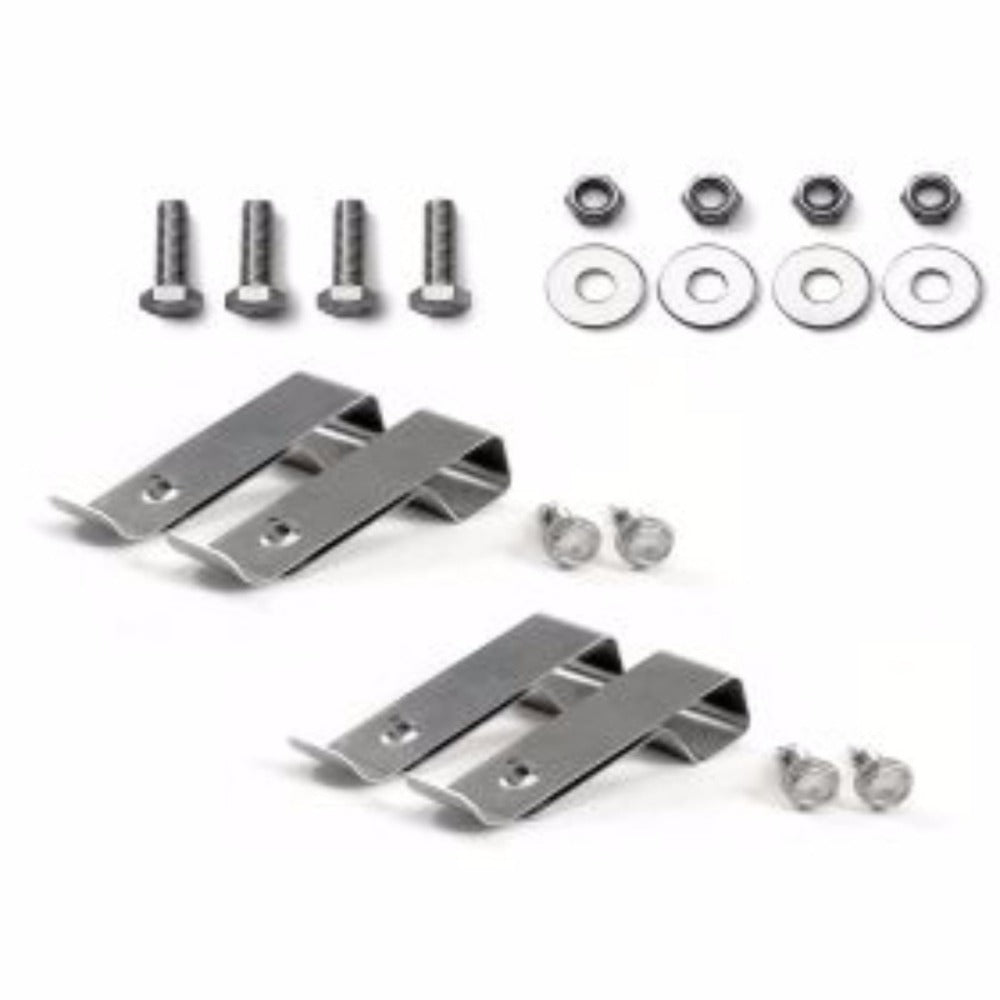

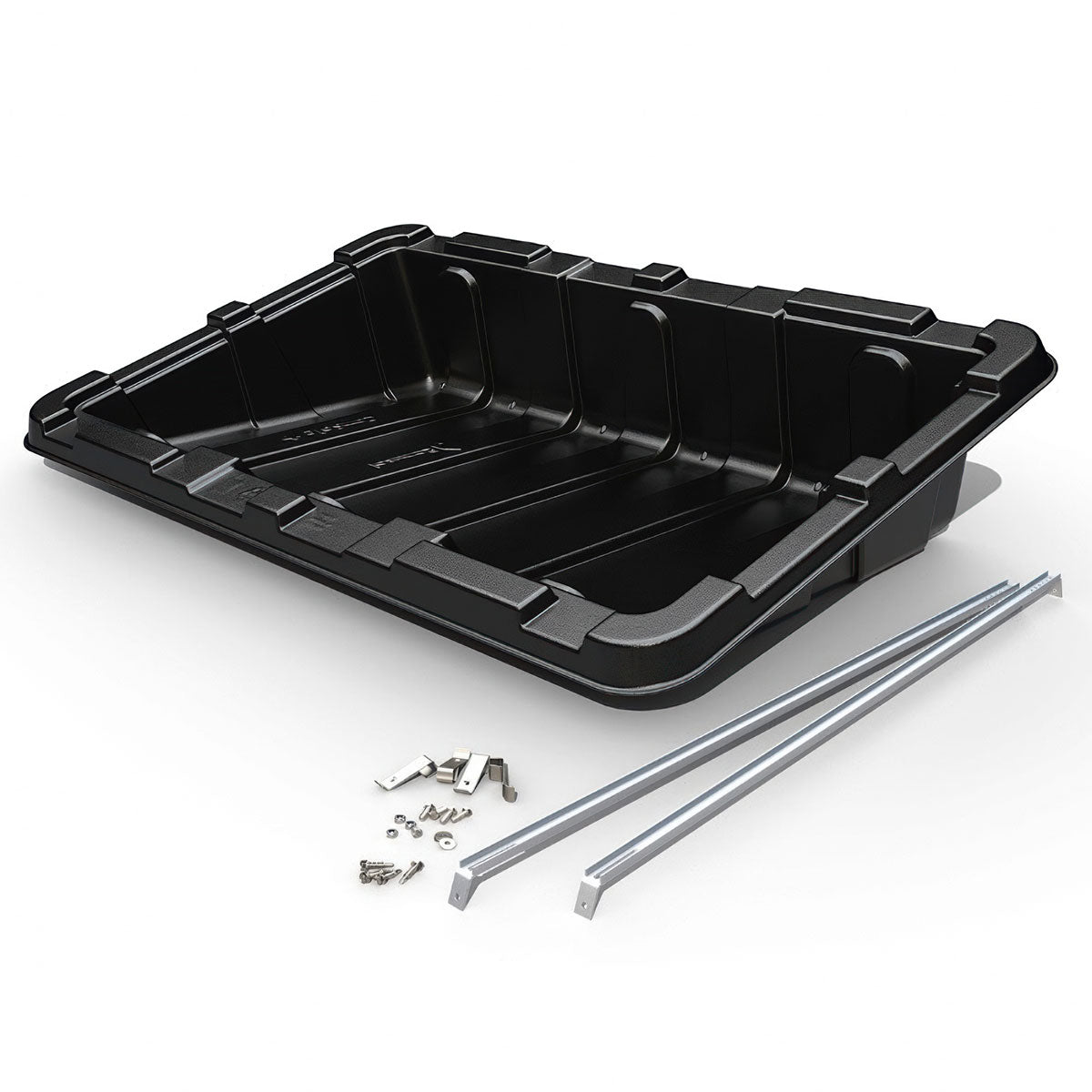

• 1 x ConSole+
\n
• 2 x ConSole U-Profile 1035 mm
\n
• 4 x Hexag screw DIN933-M6x20 A2-70
\n
• 4 x Washer DIN9021-6,4-A2
\n
• 4 x Self-locking hexag nut DIN985-M6-A2
\n
• 4 x ConSole Clip
\n
• 4 x Hexag screw DIN7504-ST5,5x25-A2-SW8
\n

\nMax 80x to a pallet. 8Kg each.\n\nNotes\n\nDatasheet\n\nManual
